Colt Sporter AR-15 Upgrade:

Colt Sporter Tactical Upgrade

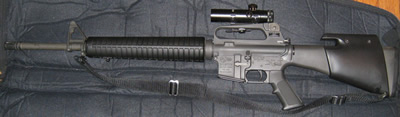

Colt Sporter Match HBAR


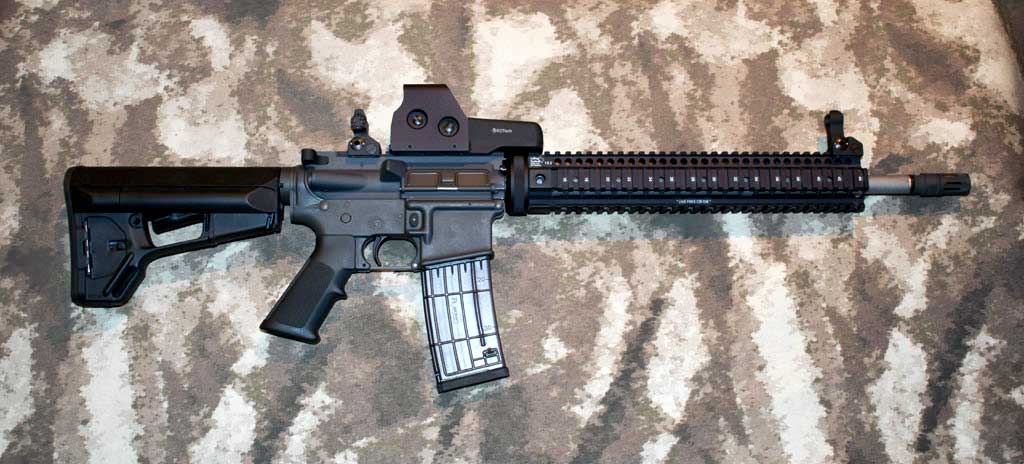

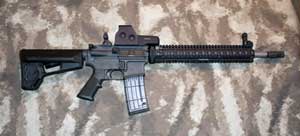

Colt Sporter AR-15 Tactical Upgrade

I have the unfortunate pleasure of living in a state that implemented its own version of an Assault Weapon Ban. Because this law was in place before the now sunset Federal Assault Weapon ban this ban will most likely remain in place forever. I was however, lucky enough to buy a Colt Match HBAR before the ban. This weapon is a "registered assault rifle" in the eyes of the state. Because of this "Pre ban" status of this weapon I am able to customize this rifle with all the best upgrades that folks in other states take for granted. Below is a list of the A-15 parts used in this project along with the rationale for their selection.

Note: June 26 2010, US Anodizing has shipped my parts. This project will finish up shortly.

Colt Sporter Tactical - Upper Receiver

White Oak Armament 16 Stainless Steel Match Grade Barrel w/Bolt

White Oak Armament makes some of the finest AR-15 barrels in the business. I was quite surprised to find Ranier Arms has the 16” M4 Match barrel in stock. The WOA barrel has the Wylde Chamber. This makes it suitable for .223 and 5.56 ammo. The barrel is bead blasted stainless steel. I purchased the barrel with a magnetic particle tested bolt that was headspaced to my barrel.

M4 Stripped Upper Receiver

I ended up purchasing two stripped upper receivers. One matte black and the other black teflon. It was my hope that the color of one of the receivers would reasonably match the color of my Colt Sporter lower. Neither did and the matte unit has been sent out for anodizing of the correct color Colt Gray. More info below.

LaRue Tactical AR15 13.2 Handguard LT15-13.2

This choice took me quite a while to decide upon. I finally narrowed it down to a Daniel Defense M4 12.0 Rail and LaRue Tactical AR15 13.2 Handguard LT15-13.2 finally deciding to run with the Larue. There were a few reasons I settled on the Larue unit. The main reason I believe was my good friend Rob at Ranier Arms planted a subliminal message that covering up as much barrel as possible would be most appealing to the eye. Naturally Rob was correct. I had no intent on utilizing a front sight gas block so the 13.2" length covers the Daniel Defense Low Profile Gas Block nicely. The LT15-13.2 also has a very comfortable profile. The LT15-13.2 is taller than it is wide.

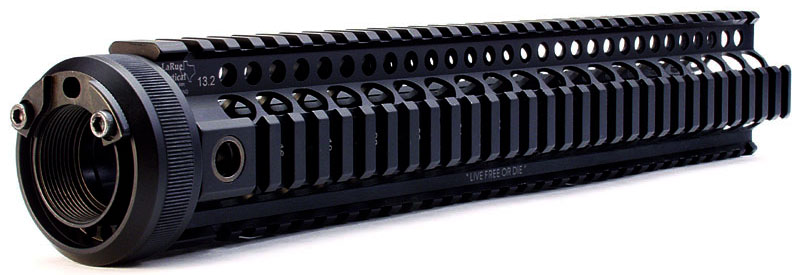

LaRue Tactical AR15 13.2 Handguard LT15-13.2

Here is the description straight from Larue Tactical:

Ideal for 16"-20" barreled uppers that need maximum rail space. The 13.2's length covers all gas blocks, including full-lengths, providing true free-float. Our two-pin proprietary barrel nut system with its locking anti-slip plate, sets LaRue handguard's apart from the competition. Once properly installed, there is no chance of movement whatsoever. The side and bottom rails are tucked closer to the barrel, keeping the profile narrower and more streamlined. LaRue handguard's also include integral QD sling-swivel sockets at the base of each side for convenient mounting 2-point slings. Additionally, our Free-float Rail system provides an excellent heat-sinking feature that pulls throat-damaging heat away from the chamber area. Another heat-sinking benefit is the elimination of pressure-spikes, which some feel is the cause of a large part of pre-mature bolt failures.

Gas Block

Yankee Hill Machine Low Profile Gas Block YHM-9383

If you have been following this project you might recall I had originally specified the Daniel Defense Low Profile Clamp On Gas Block. Unfortunately the Daniel Defense would not work with the Larue Handguard. Not wanting to buy another wrong part I ended up with two possible options. option one was to get a Larue Gas Block which would surely fit or Option two buy the smallest gas block I could find. I chose the latter for two reasons, cost and availabilty. YHM is only about an hour from my home. I ordered directly from the factory and had the gas block two days later.


Bravo Company BCM Gunfighter Charging Handle GFH MOD 3

Bravo Company does a great job of explaining why an AR-15 should include a BCM Gunfighter Charging Handle. Here's what they say:

When the AR15 system was first introduced to and fielded by the US Military in the 1960s, the manual of arms for an infantryman was significantly different than what currently exists today. To charge the rifle the shooter released their hand from a firing grip, grabbed each side of the charging handle with the thumb and forefinger or the first two fingers , (while applying pressure to the latch) pulled the charging handle all the way to the rear, and then released it to charge the weapon.

Like everything else in the last 45 years, tactics and weaponry have undergone a continuous evolution. Red dot optics get the shooter on target quicker, shorter barrels allow the operator to more quickly negotiate tighter urban areas, and operator’s manipulations of the weapon system have become much more efficient and faster. The current manual of arms has the operator maintaining a firing grip almost continuously while manipulating the weapon with the non-dominant hand in an effort to more quickly get the weapon ready to fire. With that premise, most weapon manipulations are done only with the shooter’s support hand; to include operating the charging handle.

In order to perform an immediate action or charge the carbine, current CQB techniques have the operator racking the charging handle to the rear using their support side hand only. This is done in one swift and strong movement. With the operator’s firing grip maintained, the weapon again has a loaded chamber, and the shooter can immediately bring a hot weapon back into the fight.

The current use of extended tactical latches has made this movement much more efficient. The only drawback to this type of manipulation is all the force used to rack the charging handle rearward goes into the extended tactical latch and is then transferred into the roll pin. With this scenario, the entire operation becomes contingent on the sheer strength of this tiny 1/16” roll pin, and its’ ability to take continuing blows. Repeated and forceful support hand only racking of the charging handle eventually can lead to breaking the roll pin and loosing the latch completely. With the latch blown out, the charging handle will not stay secured to the receiver as the bolt is moving back and forth during each cycle of the weapon’s action. Not a good situation on a two way range.

We have been very fortunate to receive continuing feedback from trainers and operators alike for several years now regarding these issues. Internally we have seen this many times while in the course of continually test firing weapons before sale. Initially we matched up a couple prototype solutions, but in conversations with Eric at VLTOR, he was able to develop a better design at a better price for the consumer. (VLTOR patent pending)

he BCMGUNFIGHTER™ Charging Handle and extended latches feature internal redesigns to direct the force off of the roll pin and into the body of the charging handle during support hand only manipulations. This new design has a built in backstop engineered into the extended latch and into the charging handle. As the latch is opened up, its’ travel is limited by these flat surface backstops. With this travel limiting feature, the stress is taken off the roll pin, and is now redirected into the entire body of the charging handle.

The BCMGUNFIGHTER™ Charging Handle offers two significant advantages.

  • Since the tiny roll pin is no longer the weak point - it is a much stronger system and tactical latch will stay intact even under repeated support side only manipulation.
  • With the force kept inside the body of the handle, when the handle is pulled directly to the rear, it moves directly to the rear and does not angle off to the outboard side. A much smoother operation.

Visit Bravo Company for images illustrating the differences in design.

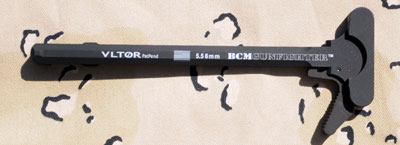

BCM Gunfighter Charging Handle GFH MOD 3

VLTOR VC-1 Flash Hider

Highly-efficient internal helical design uses ten precisely contoured longitudinal ports combined with a unique, cloverleaf-shaped exit port to trap unburned powder particles long enough for full burn and dissipation of hot combustion gasses. Muzzle flash cancels itself out to minimize shooter exposure during daytime and low-light situations. Also serves as a compensator by directing venting gasses to help reduce muzzle jump and improve shooter control for better shot placement. Precision machined from 4140 steel to stand up to rough tactical operations. 2-1/8" overall length brings a 14 1/2" barrel up to legal length for civilian use when flash suppressor is permanently pinned or welded in place. Accepts most sound suppressors and Blank Firing Attachments designed to fit a M16/M4 flash hider. VC-1 fits .223/5.56mm AR-15/M16/M4 rifles; VC-301 fits .308/7.62mm AR-style rifles.

VLTOR VC-1 Flash Hider

Colt Sporter Tactical Lower Receiver

Magpul ACS Buttstock

The lower upgrade was an easy choice. I never cared for A2 buttstock's and in the case of this weapon it also had an optional cheek riser to aid in sighting with my carry handle optics. The buttstock with the cheek riser weigh quite a bit and weight reduction is one of the primary reasons for this project. I will include a weight comparison at the end of this project.

My choice for buttstock is the collapsible Magpul ACS Mil Spec in black. Below is the manufacturers information.


The Adaptable Carbine/Storage stock (ACS) features an integrated storage compartment located at its tail for spare parts and other gear, dual water-tight battery storage tubes on either side, and a replaceable 0.30" rubber butt pad that provides an anti-slip surface and added protection from impact damage. Also features the unique cam-lock design pioneered by Magpul's CTR stock, enhancing stability and accuracy potential by anchoring the stock tightly to the buffer tube with minimal wobble. A sloping cheek weld surface and shielded release latch further contribute to the stock's ergonomic, user-friendly design. Compatible with the ASAP and other receiver mounted sling adapters, with provisions for adding push button QD sling mount sockets (not included) for right or left handed sling positioning. Buffer, buffer tube, and recoil spring not included.

Technical Information:

  • Base Stock Weight: 0.86 lb
  • Base Stock Length: 7.93 in
  • Length of Pull (LOP) Adjustment Range: 3.3 in
  • LOP Fully Collapsed: 11.45 in
  • LOP Fully Extended: 14.75 in

I will include a weight comparison at the end of this project.

American Trigger Corp AR Gold Trigger

American Trigger Corp AR Gold Trigger

Brownells Carbine Mil Spec Stock Completion Kit

This was the easiest way to get the correct receiver extension tube, carbine buffer, buffer spring to complete the build.

Brownells Carbine Mil Spec Stock Completion Kit

Young Manufacturing National Match Bolt Carrier

I bought the Young Manufacturing National Match Stripped Bolt Carrier direct from the factory. Im quickly becoming a fan of the quality of their products.

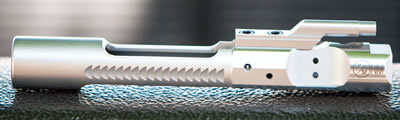

Young Manufacturing National Match Bolt Carrier for ar 15

The bolt carrier will be finished of with the fitted and headspaced bolt supplied with the White Oak barrel from Ranier Arms at the time of the barrel purchase. The other items needed to complete the carrier are:

The parts can be purchased as an AR-15 Bolt Carrier Completion Kit but that will supply a matte key rather than chrome.

Metal Finishing

US Anodizing

Today most AR-15 receivers are some variation of black. Unfortunately my Colt Sporter is a pre ban gray/blue in color. Now I'm not particularly fussy when it comes to the appearance of my guns but mating the Colt Sporter lower with a black upper looks plain awful and something needs to be done. Many folks suggested various coatings such as Duracoat and Cerakote or getting my Colt Sporter lower re-anodized black. I wasn't fond of any of those solutions. Finally Draco41 over at 308forum pointed me to Victor at US Anodizing Victor was patient responding to all my questions in a timely fashion. Victor stated that he knew the exact color I was after and could get it pretty close on my new stripped upper.

Colt Sporter Anodizing

Back Up Iron Sights BUIS

Getting the Troy Battle Sights was always the plan yet I almost wavered at the last moment and went with the GG&G sights. The DOA aperture brought me back to the Troy side. Truth be told both brands of sites are premium quality.

Troy BattleSight Front HK Folding

Durability and dead-on accuracy have made Troy Industries Folding BattleSights the hands-down choice of Special Ops and tactical users worldwide. Easy to install and to deploy, with no levers or springs to fumble with, these sights position apertures at exact factory height. A stainless-steel cross-locking system ensures sights remain upright and zeroed under extreme combat conditions. A push of a button folds the sights securely out of the way until you need them again (they fold to a profile of just 0.460). Troy BattleSights feature a zero-canting attachment system for use on all military and aftermarket receivers. No tools required for adjustment. Each click adjusts .50 MOA.

Troy BattleSight Front HK Folding

Troy BattleSight Rear Di-Optic Aperture (DOA) Folding

Advanced design, superior sighting and battle-ready toughness define Troy Industries’ Di-Optic Aperture (DOA) Folding Rear BattleSight.

These sights provide lightning fast target acquisition and are manufactured to exceed military specs. The optically engineered apertures center your eyes instantly and effortlessly providing a clearer target picture than with round apertures.

The sights feature two settings, one for up to 300 meters and a second for up to 500 meters. This versatility makes the DOA ideal for military, law enforcement and home defense applications. These advanced sights have been extensively field-tested and, like all Troy Industries products, are Battle Ready. Note: Sight is designed to work on same plane rail systems only. Will not work with a railed gasblock that is higher or lower than the receiver.

Troy BattleSight Rear Di-Optic Aperture (DOA) Folding


Place Holder.

EOTech 557 AR223 Holographic Weapon Sight (HWS) Night Vision Compatible (M557)

EOTech® 557 AR223 Holographic Sight

Go here for more images

UTG Defender Weapon and Handheld Tactical Xenon Flashlight LT-ZL168

I wanted to see how well an inexpensive tactical light would perform as a taclight wasnt in the budget for this project. It was priced similarly everywhere. You can view additional images here.

I have not mounted it on the weapon yet but I did some informal trials around the house and outside. The light is very bright, in fact much brighter than any other battery operated light I own. At a later time I plan on purchasing a higher output model for comparison sake.

Leapers UTG Defender Series Weapon and Handheld Tactical Xenon Flashlight LT-ZL168

Here is the factory specifications.

  • Model: LT-ZL168
  • Bulb Type: 26MM Xenon IRB (Integrated Reflector and Bulb)
  • Voltage: 6V Max. Output: 126 Lumens
  • Battery Operating Time: 70 mins
  • Weight with Batteries: 5.6 oz
  • Main Body Diameter: 1.00"
  • Length: 5.22"
  • Battery/Qty: CR123A x 2
  • Pressure Switch: Included
  • Mount/Ring: Slide-on Tactical Style Ring
  • Focus: Preset


  • Patterned Surface for Easy Gripping
  • Integrated Reflector & Bulb and Preset Focus
  • Handheld and Weapon-Mount
  • Law Enforcement Rated Rolling Stop Shoulder
  • Tail Push-button Momentary Switch and End-cap Twist-on Switch
  • Complete with Remote Pressure Switch and Tactical Slide-on Ring Mount
  • Two 3-volt Lithium Batteries Included

LaserMax Mantarail Momentary Switch Control System

I didnt want the typical glued on pressure switch for the tactical light and possibly future laser. After a bit of searching I found this LASERMAX MANTARAIL. The Mantarail is pretty clever, it consists of a hollow rubber pocket that can house pressure switches. The back of the MantaRail is molded to attach to a picatinny base. Inside the pocket are two rods the allow the pressure switches to be activated by squeezing the Mantarail just about anywhere along its length. The MantaRail also includes clips for routing the wires along your picatinny in a clean manner.

I will get more picturs up at a later date.

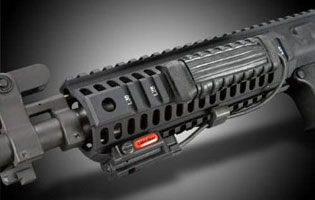

LaserMax Mantarail Momentary Switch Control System LaserMax Mantarail Momentary Switch Control System

AR-15 Tools

Every job has it tools, hopefully you already have the following tools on hand. If not you should.
